Outdoor Infrared 180° PIR Motion Sensor Wall Switch – Waterproof LED Light Controller with Adjustable Timer (110v~230v)
Outdoor Infrared 180° PIR Motion Sensor Wall Switch – Waterproof LED Light Controller with Adjustable Timer (110v~230v)
Couldn't load pickup availability
Enhance your outdoor lighting with this Infrared 180° PIR Motion Sensor Wall Switch. Designed to detect motion within a 180-degree range, it automatically activates connected LED lights upon sensing movement. Features include an adjustable timer (5 seconds to 6 minutes), waterproof design suitable for various weather conditions, and compatibility with 110v~230v power sources. Ideal for enhancing security and convenience in residential and commercial settings.
Model Number: ORI1833
Origin: Mainland China
Smart home platform: other
Features:
Sensitivity and integrated circuit
The product adopts good sensitivity and integrated circuit. It gathers automatism convenience, safety, saving-energy and practical functions. It utilizes the infrared energy from human as control-signal source and it can start the load at once when one enters detection field. It can identify day and night automatically. It is easy to install and used widely
Identify day and night automatically

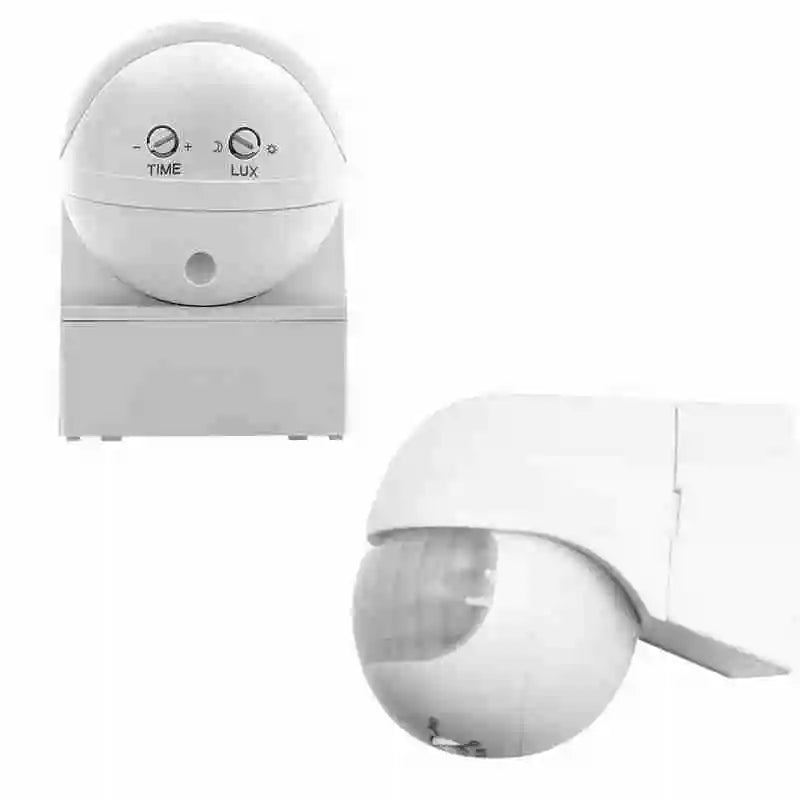

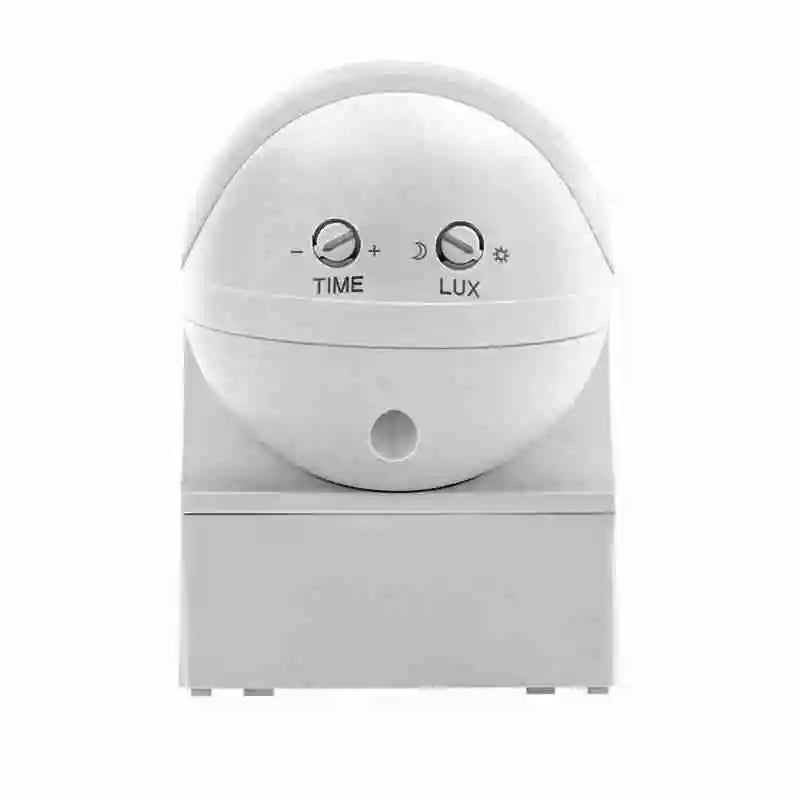

Can identify day and night: The consumer can adjust working state in different ambient light It can work in the daytime and at night when it is adjusted on the sun position(max). It can work in the ambient light less than 3LUX when it is adjusted on the 3"position(min).
Time-delay is added continually
Time-delay is added continually: When it receives the second induction signals within the first induction, it will restart to time from the moment
Power
The motion has a maximum power consumption of 800W for incandescent lamps and 200W for LED lamps or other energy saving lamps.
Detection range & Time Delay

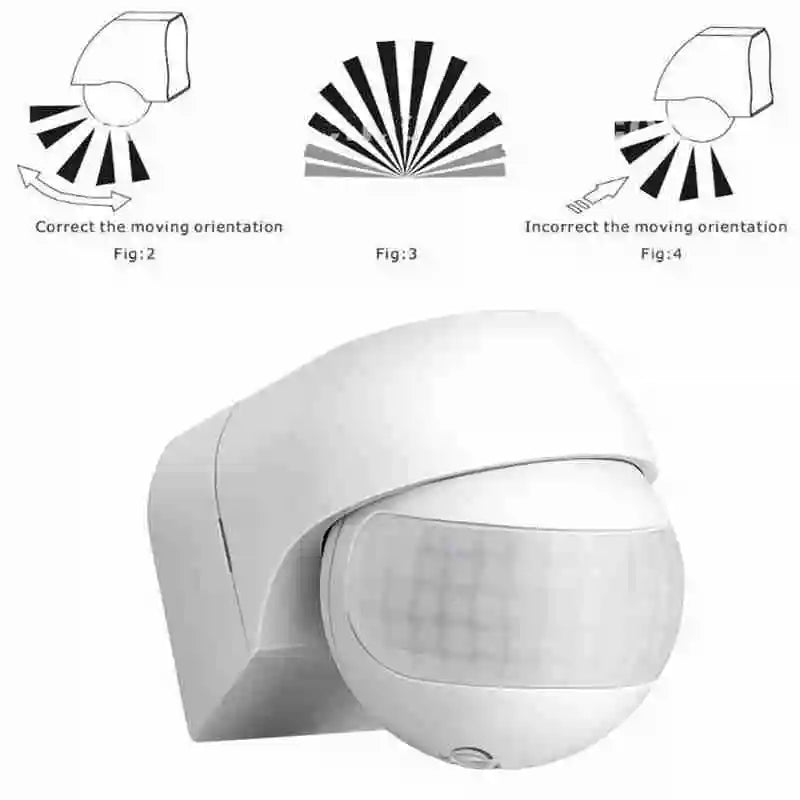

The detection range of this infrared sensor is 12m max(24 ℃ ) and 180 °. Time Delay is Min. 5 sec3sec, Max．8min2min
Adjustable

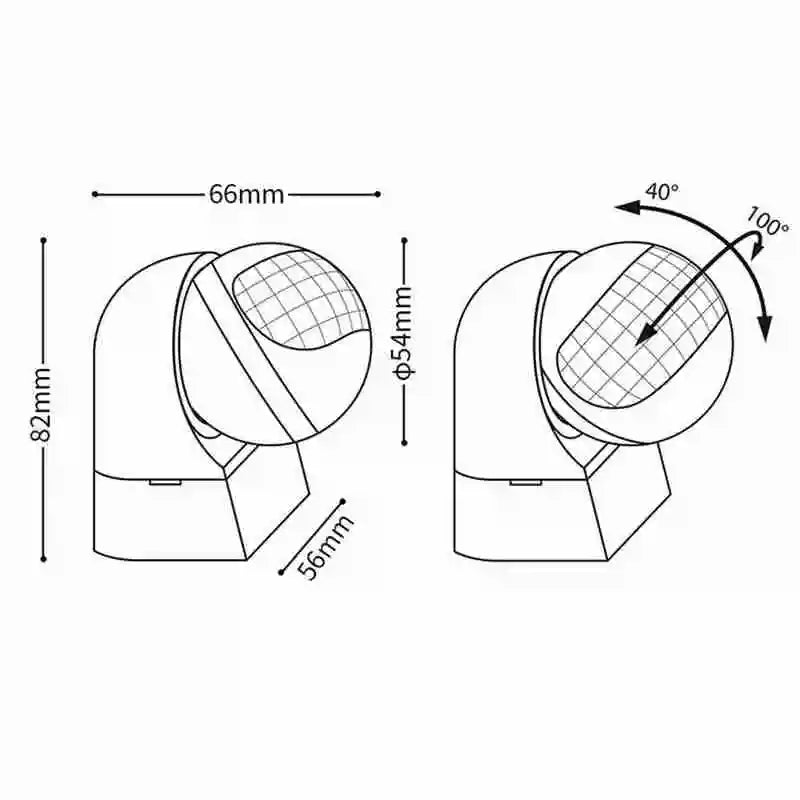

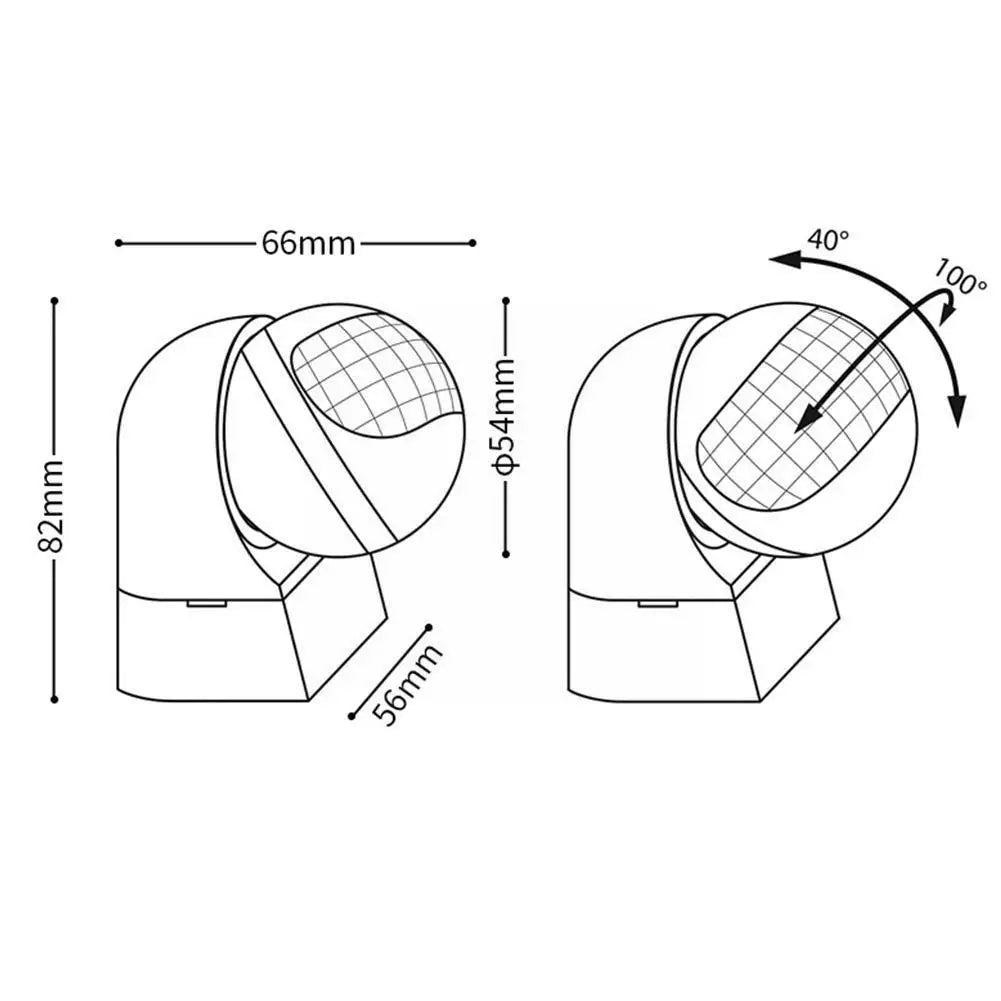

The swiveling built-in motion can also be adjusted according to the ambient brightness (in the range between 3 and 2,000 lux). The motion can be swiveled 40 ° vertically and 100 ° horizontally.
Specifications:
Item Type: Motion br />Quantity: 1pc
Item Color: White
Power Source: 110-230V/AC
Detection Range:180°
Power Frequency: 50/60HZ
Current: 4A
Detection Distance: 12m max(24 ℃)
Ambient Light: 3-2000LUX(adjustable)
Working Temperature: -20-+40 ℃
Time Delay: Min. 5 sec3sec
Max．8min2min
Working Humidity: 93%RH
Power Consumption: approx. 0.5W
Rated Load: Max 800W for incandescent lamps / 200W for LED lamps
Installation Height: 1.8-2. 5m
Detection Moving Speed: 0.6-1. 5m/s
Item Size: 79x55.5x67.5mm/3.1*2.2*2.7"
Net Weight: 128g/4.5oz
Package:
1* motion br />
